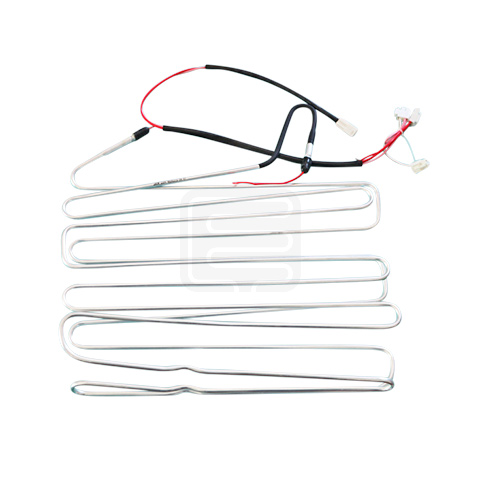

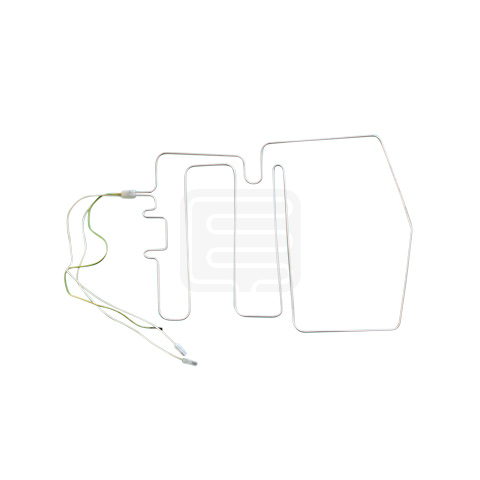

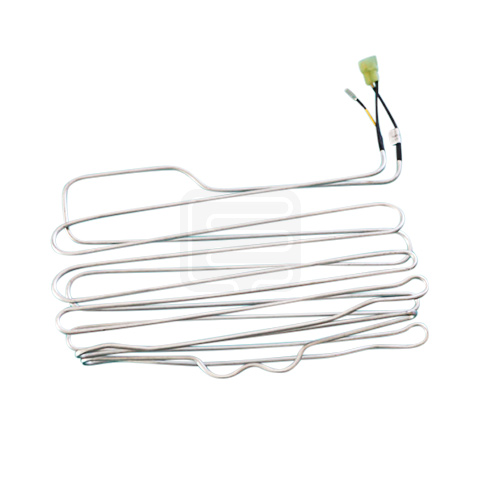

Various shapes of electric heating components are made by using aluminum tubes as the carrier and placing the silicone rubber heating wires in the aluminum tubes. The maximum operating temperature is below 150 ℃. According to the outer diameter of the aluminum tube, it can be divided into three types: ⌀4.4, ⌀5.0, ⌀6.35 mm, with good Sealing performance, fast heat transfer, easy to process and mold, and there is no need to commission new designs or tools. The Thermostat or fuse can be integrated according to the client’s requirements.
The aluminum tube defrosting Heating Wire is suitable for heating in an environment where the rated voltage is below 250 V, 50~60Hz, relative humidity ≤90%, and the ambient temperature is -30 ℃~+50℃. It heats up quickly, evenly, and safely, and is widely used for defrosting, thawing and drainage heating of air-cooled refrigerators, freezers, wine cabinets, etc., as well as heat preservation of other electric heating appliances. Heating is rapid, uniform, safe, and the required temperature can be obtained by controlling the power density, Insulating Material, temperature switch, heat dissipation conditions, etc.
Classfication | PVC | GJ | |
heating wire insulator | 105℃PVC | Silicone Rubber | |
Size | Can be customized on request | ||
Voltage | According to needs | ||
Output | Up to 15W/m | Up to 40W/m | |
Power Deviation (Resistance Deviation) | ≤±5% | ||
Dielectric strength at room temperature | ≥100 MΩ | ||
1800V 2S no breakdown or flashover | |||
current leakage under Working temperature | ≤0.02 mA/m | ||
Connection strength | Heating wires and lead wires | ≥36N 1min no abnormality | |
lead Wires and Terminals | ≥58.8N 1min no abnormality |
