Carbon Fiber Quartz Tubular Heater

Carbon fiber electric tubular heater is a new type of infrared radiation heating element that is different from the traditional metal wire and halogen infrared heating lamp. A carbon fiber wire is placed in a quartz tube. The tube is vacuum and sealed. Pass a voltage on the carbon fiber wire to generate heat by heating the carbon fiber wire. The carbon fiber heating tube we produce adopts imported carbon fiber Heating Wire as the heating element, and the peak value of the main wave can be 2-9.5μm. Its color is soft. The intensity of visible light is small, and the starting current is small. High electric heating conversion efficiency, significant energy saving; service life of 5000 hours. It can comply with GB/T2423.3-1993 basic environmental experimental regulations and tests for electronic and Electrical Products, Ca tests: constant humidity and heat experimental methods and GB4706.1-1992 general Safety requirements for household and similar Electrical Appliances.

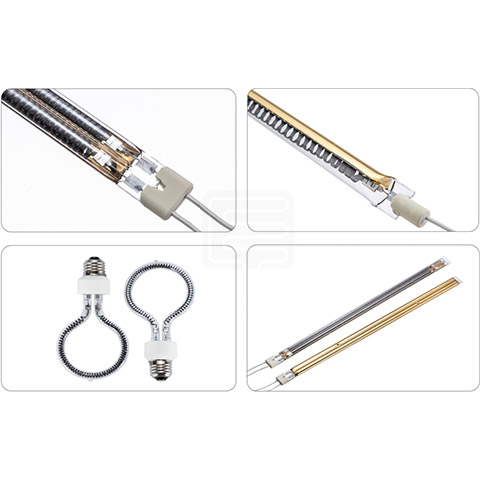

Infrared Radiator Carbon Medium Wave Specification

Difference between Quartz Heater and Carbon Fiber Heater

1. Comparison of energy consumption: Quartz heating element rely on tungsten filament to generate electricity through resistance. The carbon fiber heating element is a pure blackbody material, where, in the electricity-heat conversion process, the visible light is very small, and the electric-heat conversion efficiency can be more than 95%. Heaters that use materials such as nickel-chromium, tungsten and molybdenum as heating elements can save 30% of energy. At the same power, the radiation temperature is higher than that of nickel-chromium metal electric heating tube by 30℃, higher than tungsten molybdenum wire quartz electric heating tube by 15℃. The far-infrared rays emitted by the carbon fiber heating tube can be directly absorbed by the human body, clothing, water, etc. The heat loss during heat transfer is small. It is more absorbent to carbohydrates, has a good resonance effect, and the product performance is greatly improved. Infrared light has strong reflectance, permeability and resonance. It can penetrate through 3-7mm. Compared with the infrared rays of carbon fiber infrared quartz electric heating tubes and metal heating elements, the absorption wavelength and infrared radiation intensity of organic matter are increased by more than 30%. The processed food can be irradiated with a carbon fiber infrared quartz electric heater. Due to the strong permeability of infrared radiation and the short conditioning time, the food can maintain its freshness and its original taste. Baking paint with carbon fiber infrared quartz electric heating tube can effectively improve the surface quality of the paint, increase the adhesion of the paint film, increase the strength, brightness and toughness. For heaters made of heating, due to the high intensity of infrared radiation, they have the function of promoting blood circulation in the human body and are beneficial to human health. They are known as health-care heaters.
2. Service life comparison: In general, the service life of the quartz heater is 2000-3000hours. The carbon fiber heating element has no instantaneous current shock. No ballast is required for ignition. There is no pulsed current shock when starting, which simplifies the lighting power supply and protection circuit, and extends the service life of the power supply and related electrical appliances. The service life is 5000-8000 hours.
3. Pipe material comparison: Quartz heating tubes are only used for simple encapsulation, while carbon fiber heating tubes are used for vacuum treatment. Via a destructive test, energize the quartz heating tube and the carbon fiber heating tube for half an hour, and at the same time put it into the water for a destructive test. The quartz heating tube is broken, and the carbon fiber heating tube is intact and can be energized to continue the operation.
4. Quartz tube transparency rate: The transparency rate of quartz tube directly affects the calorific value of the tube. Ordinary quartz tubes are simply made of quartz stone, mica, etc. Carbon fiber quartz tubes are purified and dehydroxylated. The hydroxyl content of the quartz tube directly affects its calorific value.
5. Environmental protection comparison: The metal tungsten in the quartz heating tube is a non-renewable resource, and the carbon fiber wire is an environmentally friendly material, which is renewable and inexhaustible. Discarded carbon fiber filaments will not pollute the environment, have no light pollution, do not irritate the eyes or burn the skin. There is no ultraviolet radiation, harmful gases and high-frequency radiation.
   6、The temperature and power of carbon fiber heating tube are adjustable. It can meet various Industrial requirements of equipment.

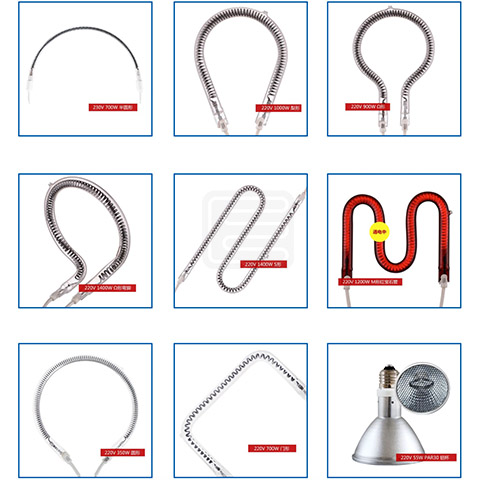

Classification Of Carbon Fiber Quartz Heater

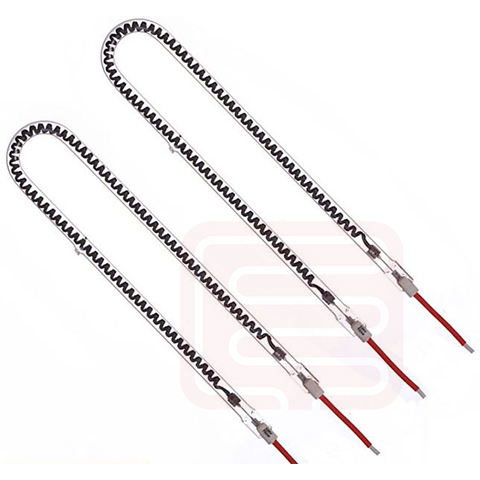

1. Classification by heating wire shape: Carbon fiber filament spiral shape, carbon fiber filament woven into cylindrical shape；
2. Classification by quartz glass tube color: transparent type, black and red (ruby) type；
3. Classification by cable connection type: mono-tube with cable at both ends, mono-tube with cable at one end; bitube with cable at both ends, bitube with cable at one end.

Usage of Carbon Fiber Quartz Heater

1. Electric convection, radiation heaters, heaters, bath, far infrared physiotherapy, beauty instruments, light wave room and other heating and far infrared health care fields.
2. Food, tea, tobacco, wig, clothing, medicine, printing, ink, oven, oven, paint, spray and other kinds of drying machinery
3. All kinds of infrared drying tunnels or channels.
4. Vegetable greenhouse thermal insulation planting, pump room drying, moisture removal and other fields are especially suitable for medicine and health, scientific research laboratory, non-polluting environment, containing acid and alkali corrosive heating occasions.

Installation Precautions of Carbon Fiber Quartz heater

1. It can be installed horizontally, obliquely or vertically.
2. When in use, the utility model is matched with an aluminum reflecting cover or a stainless-steel reflecting cover, a plane or a paraboloid reflecting cover. But parabolic reflector: improve the utilization rate of radiation is high, our factory can be processed.
3. Avoid violent vibration and shaking.
4. The distance between the heating element and the object to be heated should be controlled at 150-450 mm, depending on the condition of the dried object.
5. Quartz heating element belongs to brittle material. Attention should be paid to safety in installation and use. Necessary protective measures should be taken according to the specific conditions of the heated object to avoid mechanical damage
