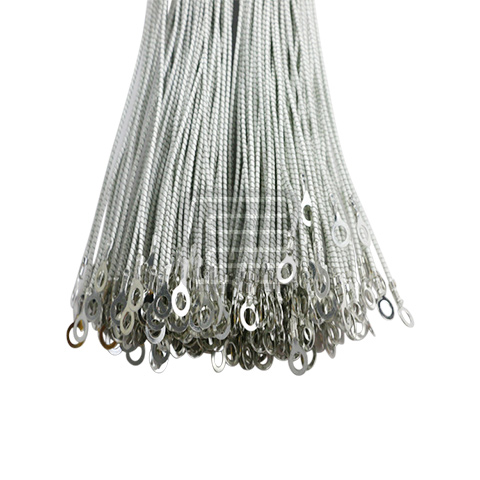

Core Of Heating Cables

The Core Of Heating Cables is an Heating Cable woven with resistance alloy cable as a heating body on the glass fiber core cable, and wrapped with Industrial polyester filament or glass fiber on its outer layer, and is directly connected to the terminal at both ends to make a linear electric Heating Element, which is used in the air heating drying device, the working temperature can be as high as 600℃.

The core of heating cable can be bent and wound according to the shape of the heated body without additional processing.

Parameters

1. Resistance deviation range per meter :±7%
2. Voltage ≤380V
3. Power density: directly processed into heating elements ≤100W/m
4. Working temperature: directly processed intoheating elements ≤600° C
5. Resistance per meter :10Ω~ 50,000ω /m
6. Diameter: ⌀1.0~⌀3.0mm
