Infrared Heating Element | Dual Tube

After years of accumulation and development, the infrared heating elements provided by our company have become serialized and specialized, with the characteristics of rapid heating, high thermal efficiency and long service life.

It is important to choose the right radiator for your product, as the wavelength plays an important role in the heating process. Shortwave radiation can penetrate some solid materials, ensuring uniform heating; medium-wave radiation is mostly absorbed by the surface of the material and mainly heats the surface of the material. Plastics, water and water-based materials absorb infrared medium-wave radiation best and convert it directly into heat energy.

Technical Parameters of Infrared Heater| Dual Tube | Short Wave

Maximum wavelength range: 1.1-1.4μm
Filament temperature: 1800-2400°C
Starting current coefficient: 12-17A
Reaction time: 1-2 seconds
Maximum power ＜ 200W/cm
Maximum surface power density: 200kW/m²
Maximum heating length: 2.1, 3.5, 4.0m
Double tube standard cross section: 8x18, 11x23, 15x33mm
Coat: white or gold
Working mode: horizontal or vertical

Technical Parameters of Infrared Heater | Dual Tube | Medium Wave

Infrared medium wave radiation is particularly suitable for heating the surface of objects or thin materials. Plastics, water and water-based materials absorb infrared medium waves best. It has the characteristics of low cost, high strength and long life. It is suitable for heating processes of most materials.

Maximum wavelength range: 2.2-3.2μm
Filament temperature: 800-950°C
Starting current coefficient: 1-1.05A
Reaction time: 60-90 seconds
Maximum power: 18, 20, 25W/cm
Maximum surface power density: 60kW/m²
Maximum heating length: 2.1, 3.5, 4.0m
Double tube standard cross section: 8x18 11x23 15x33mm
Coating: white or gold
Working mode: horizontal

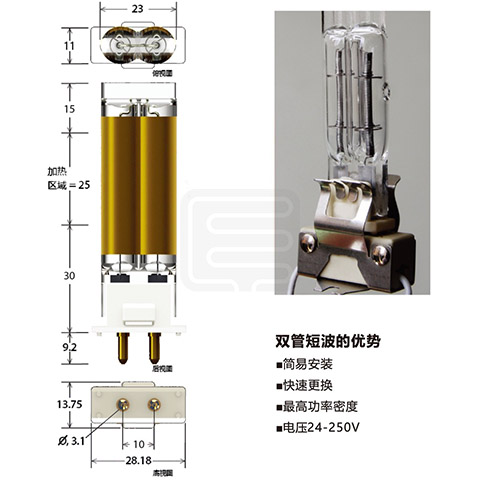

Specification of Dual Tube | Shortwave| Fast Connection Infrared Heater

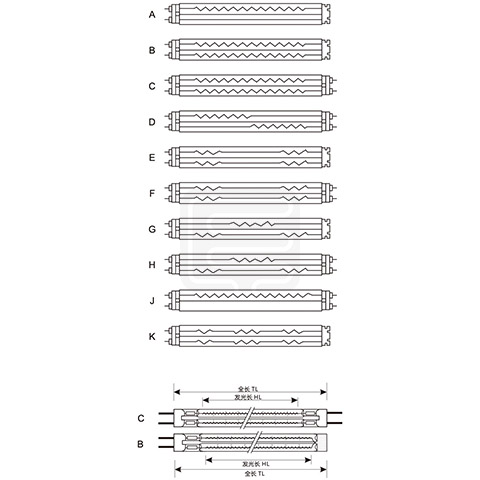

Product code	Voltage	Wattage	Quartz Tube	Total Length（mm）	Haaned Length(mm)	Reflector	Construction	Hereaus No.
S8012	55	400	11x23	115	50	Gold	B	45130750
S8013	480	10000	11x23	1860	1780	Gold	C	45130753
S8014	240	2000	11x23	320	255	Gold	B	45132045
S8015	240	2000	11x23	370	305	Gold	B	45132827
S8016	240	1500	11x23	255	190	Gold	B	80002677
S8017	115	1100	11x23	205	140	Gold	B	80009069
S8018	240	3400	11x23	510	430	Gold	C	80009073
S8019	115	450	11x23	70	25	Gold	B	80010767
S8020	480	6000	15x33	1120	1000	Gold	B	80042199
S8021	120	1180	11x23	250	150	White	B	80046737
S8022	240	2750	11x23	450	350	White	B	80046754
S8023	480	5510	11x23	800	700	White	B	80046754
S8024	115	600	11x23	145	80	Gold	B	9751713
S8025	230	1500	11x23	300	200	Gold	B	9751751
S8026	230	1200	11x23	405	340	Gold	B	9751741
S8027	400	3000	11x23	600	500	Gold	B	9751740
S8028	230	3000	11x23	650	500	Gold	C	9751761
S8029	230	4200	11x23	850	700	Gold	C	9751765
S8030	400	6000	11x23	1150	1000	Gold	C	9751760
S8031	400	7000	11x23	1450	1300	Gold	A	9751731
S8032	400	3000	11x23	1100	1000	Gold	A	9751720
S8033	240	3400	11x23	510	430	Gold	C	80009073
S8034	115	450	11x23	70	25	Gold	B	80010767
S8035	480	6000	15x33	1120	1000	Gold	B	80042199

Specifications of Infrared Radiator Used in Heidelberg Printing Press

Product Code	Lamp Code	Wave Length	Voltage (V)	Wattage (W)	Total Length (mm)	Quartz Tube (mm)	HD PART	Dryer Details
S8036	SM52-SW-A	Short Wave	415	3300	712	11*23	G4.170.0101	Grafix Heidelberg Sm52
S8037	HMO-SW-A	Short Wave	415	3300	740	11*23	53.170.1311	Grafix Heidelberg MO
S8038	HMO-MW-B	Med Wave	415	1800	740	15*33	53.170.1411	Grafix Heidelberg MO
S8039	SM72-SW-A	Short Wave	415	3500	800	15*33	83.170.1311	Grafix Heidelberg 72
S8040	SM72-MW-B	Med Wave	415	1900	800	15*33	83.170.1411	Grafix Heidelberg 72
S8041	SM102-SW-A	Short Wave	415	3500	1100	11*23	91.170.1311	Heidelberg SM102(pre1997) Grafix Part:2130012
S8042	SM102-MW-B	Med Wave	415	2500	1100	15*33	91.170.1411	Heidelberg SM102(pre1997) Grafix Part:2130011
S8043	SM74-SW-C	Short Wave	400	6950	900	11*23	M6.170.0301/01	Drystar-Heidelberg SM74/CD74(post 1997)
S8044	SM74-FMW-B	Fast Med	480	4200	820	15*33		Grafix Heidelberg SM74 Post 1997
S8045	MANGX-FMW-B	Fast Med	415	4200	820	15*33		Grafix SHS MAN Roland 500
S8046	SM102-SW-C	Short Wave	400	5400	1200	11*23	C7.170.0301/01	Drystar
S8047	SM102-FMW-B	Fast Med	480	6000	1120	15*33		Grafix SHS Heidelberg 102 post 1997
S8048	SM102-FMW-B-3000	Fast Med	400	6200	1160	15*33	F7.170.0771	Drystar 3000 Heidelberg SM102/ CD102/SM10(post 2004)
S8049	SM105XL-FMW-B	Fast Med	400	6200	1160	15*33	F7.170.0771/01	Drystar Heidelberg SM105XL(post 2007)

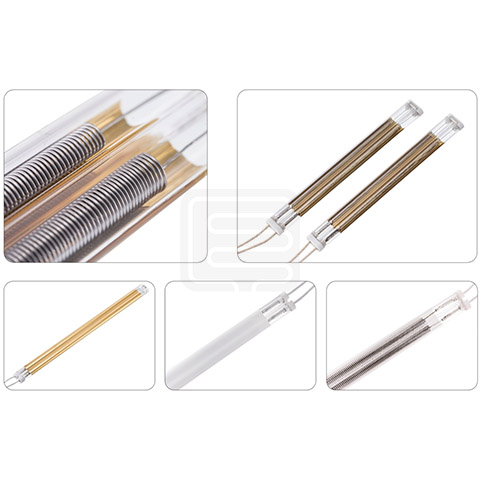

Specification of Infrared Radiator | Dual Tube | Medium Wave

Product code	Voltage (V)	Wattage (W)	Quartz Tube (mm)	Total Length （mm）	Haaned Length	Reflector	Construction	Hereaus No.
S8083	230	500	8*18	400	300	Gold	B	09752439
S8084	230	1000	11*23	600	500	Gold	B	09755167
S8085	230	2000	15*33	900	800	Gold	B	09755054
S8086	230	2500	15*33	1100	1000	Gold	B	09755255
S8087	230	3250	15*33	1420	1300	Gold	B	09753187
S8088	230	3750	15*33	1600	1500	Gold	B	09754585
S8089	230	2500	15*33	1300	1200	Gold	C	09753923
S8090	400	4100	15*33	1800	1700	Gold	B	09754863
S8091	400	4500	15*33	1920	1800	Gold	B	09754783
S8092	400	5750	15*33	2400	2300	Gold	B	09756083
S8093	400	6250	15*33	2600	2500	Gold	B	09753874
S8094	400	4000	15*33	1700	1600	Gold	B	09752912
S8095	220	1800	15*33	800	740	Gold	B	09757499
S8096	415	1800	11*23	720	600	Gold	B	09757755
S8097	380	2500	15*33	1100	960	Gold	B	09757498
