Electric Cast Iron Plate

The electric cast iron plate has been popular in the global market for decades. In addition to proven household electric cast iron plate, we also offer commercial electric cast iron plate in various shapes and sizes for professional kitchens. Whether round, square or rectangular.

The heat output can be controlled via a multi-contact switch. The different heat levels meet all the needs of modern catering, effectively boiling, simmering and keeping the contents of the pot warm.

The electric cast iron plate is made of cast iron plate, insulating material, heating wire, etc. It overcomes the shortcomings of the traditional cast aluminum plate that is easy to deform, has low thermal efficiency and short service life of the heating element plate. Our products are mainly exported, and many large companies with a long history in Germany, Italy, Turkey, etc. all use our products.

Common Specification

Picture	Order code	DIAMETER (MM)	POWER (W)	VOLTAGE (V)	OUTLETS	CONNECTION MODE	DECORATIVE RING HEIGHT	HEATING SURFACE MATERIAL	DECORATIVE RING	REMARKS

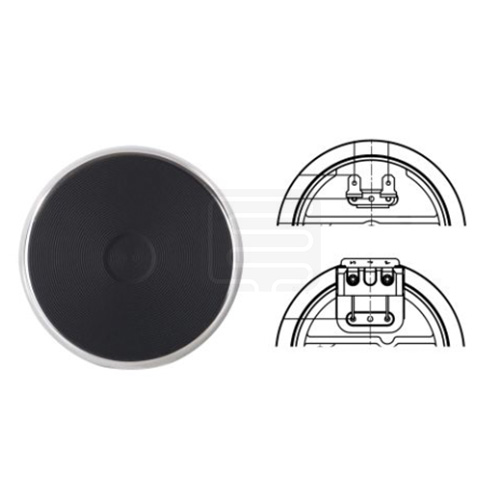

	S7628	90	450	220 -240	2&3	SCREWS OR TAP	8	CAST IRON	STAINLESS STEEL 430	WITHOUT THERMOSTAT

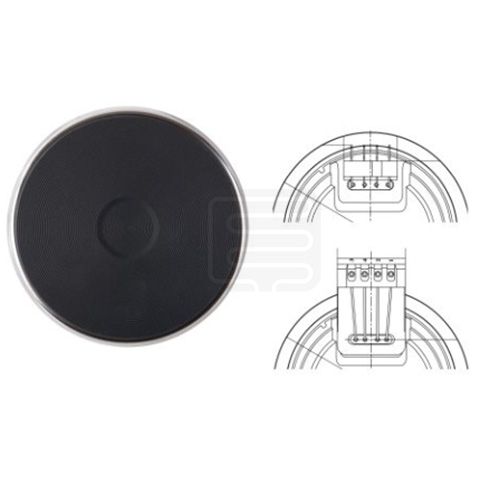

	S7629	110	850	220 -240	2&4	SCREWS OR TAP	8	CAST IRON	STAINLESS STEEL 430	WITHOUT THERMOSTAT

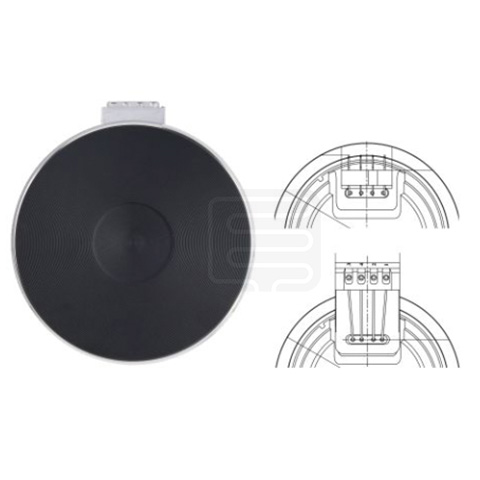

	S7630	145	1000	220 -240	2&4	SCREWS OR TAP	8&5	CAST IRON	STAINLESS STEEL 430	WITHOUT THERMOSTAT

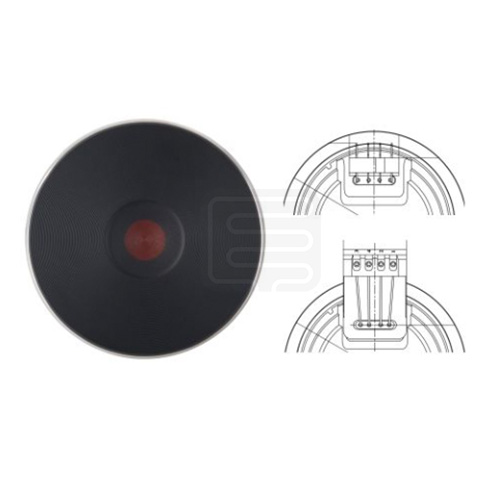

	S7631	145	1500	220 -240	4	SCREWS OR TAP	8&5	CAST IRON	STAINLESS STEEL 430	WITH THERMOSTAT

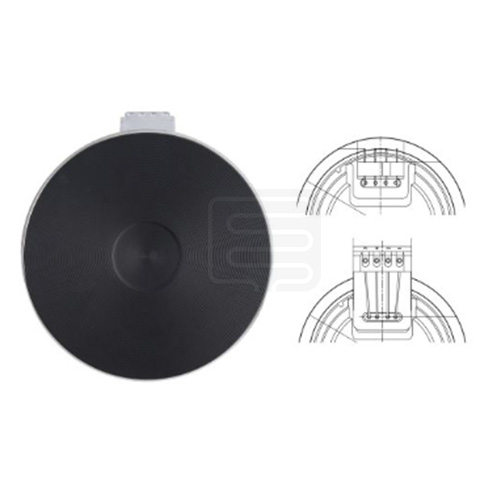

	S7632	180	1500	220 -240	4	SCREWS OR TAP	8&4	CAST IRON	STAINLESS STEEL 430	WITHOUT THERMOSTAT

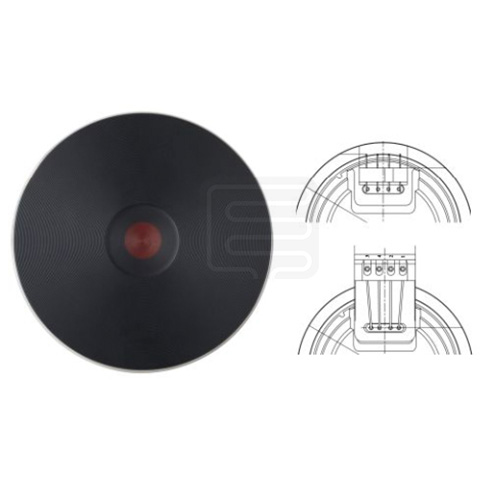

	S7633	180	2000	220 -240	4	SCREWS OR TAP	8&5	CAST IRON	STAINLESS STEEL 430	WITH THERMOSTAT

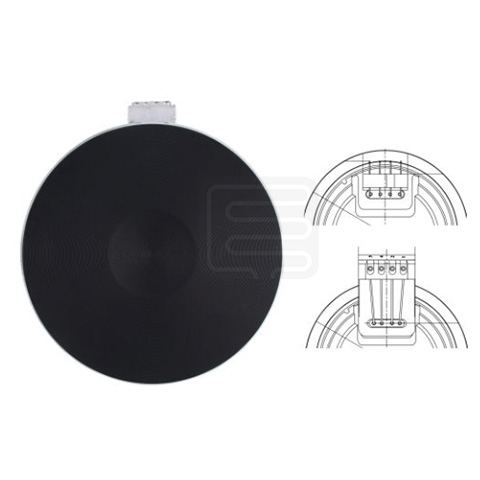

	S7634	220	2000	220 -240	4	SCREWS OR TAP	8&5	CAST IRON	STAINLESS STEEL 430	WITHOUT THERMOSTAT

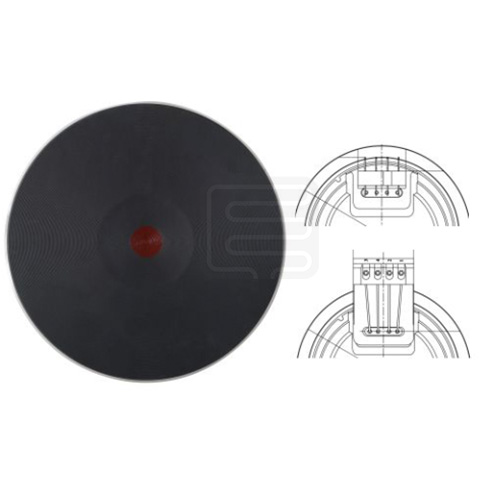

	S7635	220	2600	220 -240	4	SCREWS OR TAP	8&5	CAST IRON	STAINLESS STEEL 430	WITH THERMOSTAT
