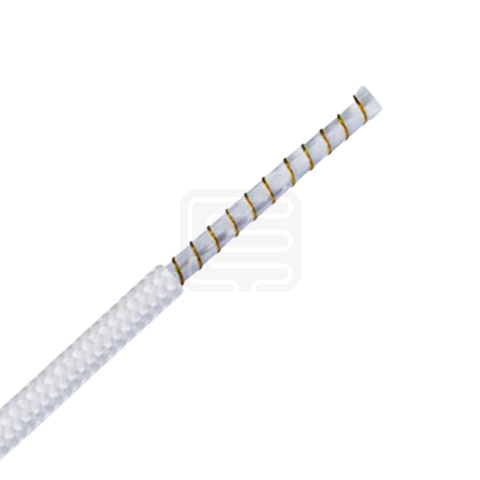

A glass fiber braided electric Heating Wire is made of an electric heating wire in which a resistance alloy wire is wound on a glass fiber core wire as the Heating Element, and glass fiber is braided on its outer layer as an insulating layer. Due to the high temperature resistance of glass fiber, the working temperature of this heating wire can be as high as 600 ℃. Usually sealed in a metal tube, it can be used in a variety of wet applications. It is widely used in Home Appliances, machinery and equipment.
1. Deviation range of resistance value per meter: ±7%.
2. Sealed in a metal tube, normal insulation resistance: ≥100 MΩ; voltage resistance: 1500 V/min; leakage current: 0.05 mA/m.
3. Voltage: ≤380 V
4. Power density: dry environment ≤200 W/m; sealed in metal tube ≤70 W/m
5. Working temperature: dry environment ≤600 ℃; sealed in metal tube ≤200 ℃
6. Electrical resistance per meter: 10~30000 Ω/m
7. Diameter:⌀2~⌀8mm
8. Thickness of insulating layer: 0.5~3 mm
9. The braided glass fiber heating cable and the outgoing wire are connected with connecting clips and sealed with silicone sleeves.
1. Used in household appliances, such as electric steamers, electric Cookware, etc.
2. Other applications, include side heating for elevators, drying of wood and during woodwork, etc.
