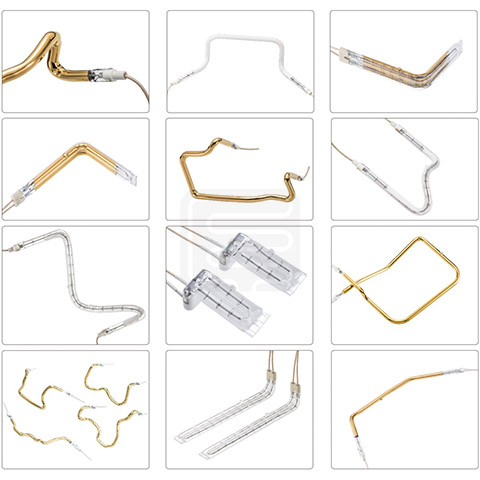

Infrared Special Shaped Quartz Heater

Infrared Special-Shaped Quartz Heater

We can make special-shaped infrared radiators according to the shape of the corners and edges of the workpiece, accurately position the corners and contours, and heat them in a focused manner to complete the required bending process.

Technical Parameters

  1. Single tube diameter: 8mm-14mm
  2. Double tube clamp: 8*18 11*23 15*33mm
  3. Voltage: 45V-480V
  4. Power: 150W-6000W
  5. Wavelength: short wave, medium wave
  6. Special needs: can be customized according to customer requirements

Specification

Product codeVoltage (V)Wattage(W)Quartz Tube (mm)ShapeReflectorFRIMO No.
S814311551010UGold284343
S814423080010UGold293640
S814511571010UGold282014
S8146230110010UGold283932
S8147230133010UGold294058
S814811560010LGold282106
S8149115520103DGold282094
S8150230880103DGold282093
S8151230110011*23LGold282002
S8152230280011*23LGold281997
S81532302200103DGold282009
S81542302200103DGold282008
S81552302000103DGold314255
S8156230910103DGold280727
S8157230810103DGold280728
S81582301320103DGold280773
S8159115410103DGold280770
S81602301450103DGold305417
S81612301630103DGold305418
S81622302290143DGold297058
