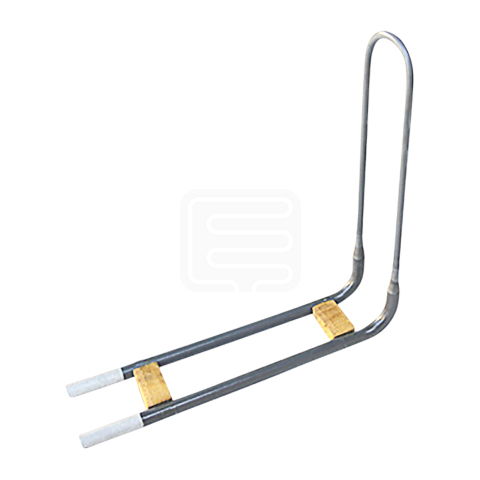

  •  Mosi2 Heater L Shape Bent At Cold Zone
  • Mosi2 Heater L Shape Bent At Cold Zone

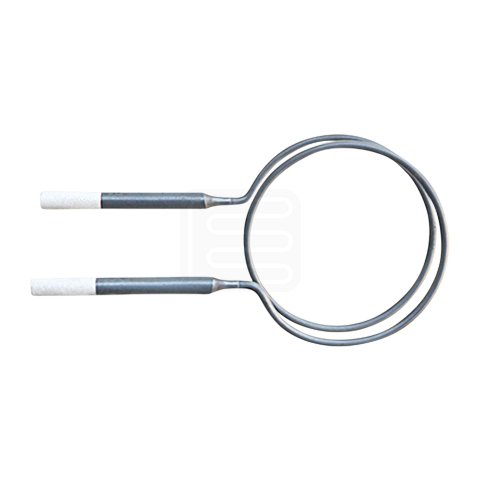

  •  Mosi2 Heater Circle Shape
  • Mosi2 Heater Circle Shape

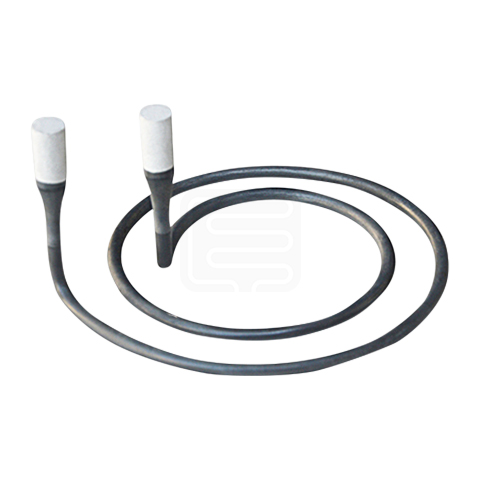

  •  Mosi2 Heater Circle Shape2
  • Mosi2 Heater Circle Shape2
  •  Mosi2 Heater L Shape Bent At Hot Zone
  • Mosi2 Heater L Shape Bent At Hot Zone

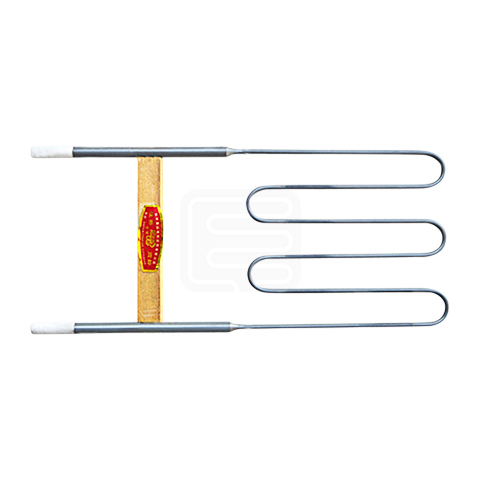

  •  Mosi2 Heater Multi Shank Element
  • Mosi2 Heater Multi Shank Element

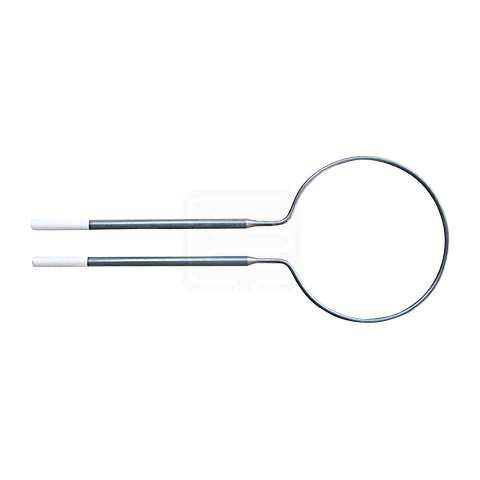

  •  Mosi2 Heater Circle Shape3
  • Mosi2 Heater Circle Shape3

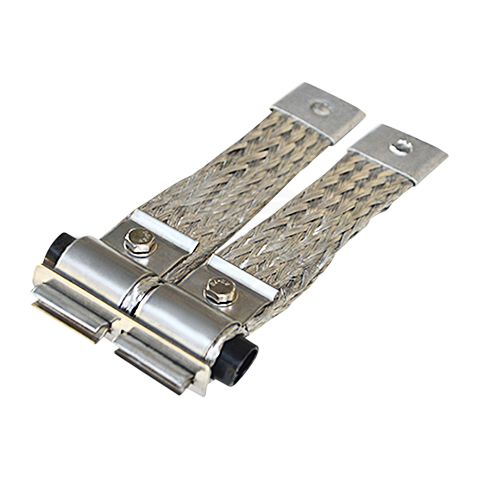

  •  Contact Straps
  • Contact Straps

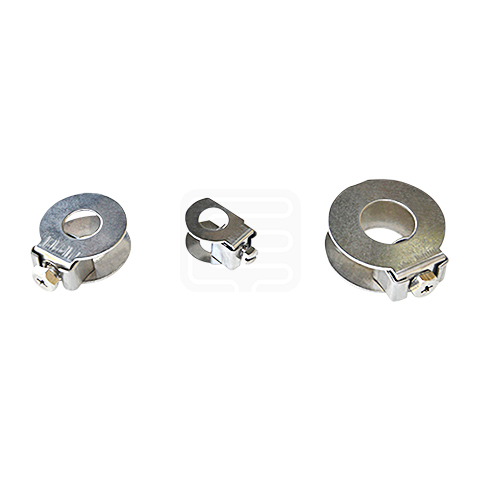

  •  O Type Fixture
  • O Type Fixture

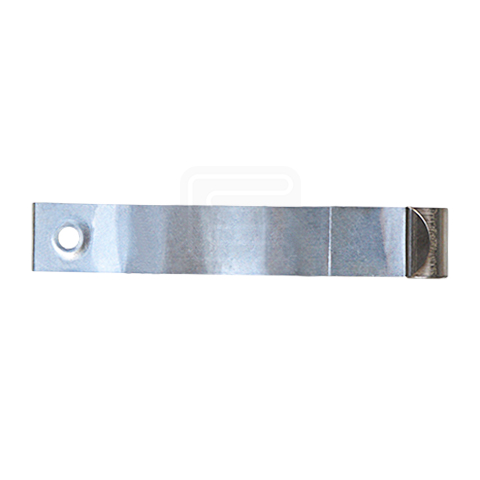

  •  Semi Circle Fixture
  • Semi Circle Fixture

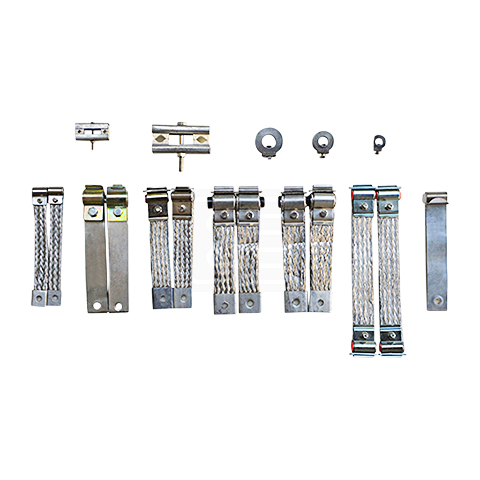

  •  Silicon Fixture
  • Silicon Fixture
  • Molybdenum Disilicide | Mosi2 Heating Elements | High Power
    For Electric Heating of Industrial Furnaces

    Introduction

    Molybdenum disilicide Heating Element is a resistance heating element based on molybdenum silicide, which is heated to high temperatures in an oxidizing atmosphere and generates a dense quartz glass film on its surface to protect it from further oxidation. Therefore, it has unique high temperature oxidation resistance. In oxidizing atmosphere, its maximum temperature can reach 1800℃, and its applicable temperature is 500~1700℃, which can be used as heating elements for ceramics, magnetic materials, glass, metallurgy, refractory materials, and other Industrial high temperature furnaces.

    Generally divided into straight and curved shapes. It can be customized into a variety of shapes and sizes, all components have a long life and consistent performance characteristics.

    Common Shapes

    • The most commonly used design is a two-shank U-shaped element. The heating zone is welded to terminals which normally have a diameter double that of the heating zone.

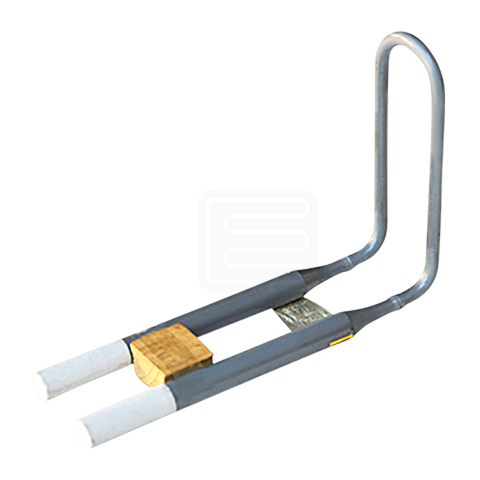

    • The two-shank element can be bent 45° or 90° either in the heating zone or in the terminals.

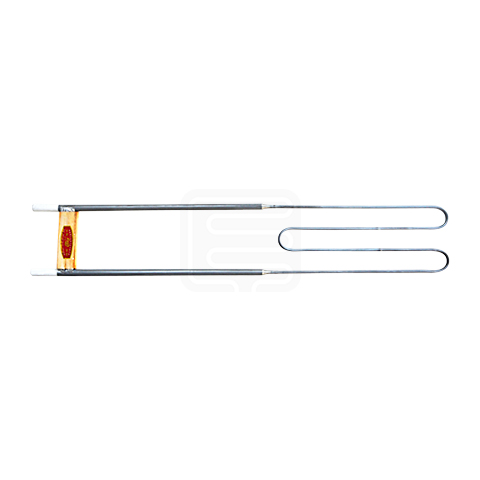

    • Four-shank elements are used only horizontally。

    Influence of different atmospheres on the temperature of the MoSi2 heating elements

    AtmosphereMax. element temperature
    Super MoSi2-1700Super MoSi2-1800
    Air1700℃1800℃
    Nitrogen1600℃1700℃
    Argon,Helium1600℃1700℃
    Hydrogen1100~1450℃1100~1450℃
    N2/H95/5%1250~1600℃1250~1600℃
    General applicationsMost types of industrial furnace for heat treatment, forgoing, sintering, glass melting ,refining and uses in radiant tubesLaboratory furnaces,testing equipment and high temperature sintering production furnace

    Surface load recommended

    Furnace Temp.14001500160016501700
    Surface load of hot zone(W/cm²)<18<15<12<10<8

    SIZES

    Grade ELEMENT SIZE, MM HEATING ZONE DIAMETER/TERMINAL DIAMETER
    3/64/96/129/1812/24
    Supper 1700YESYESYES
    Supper 1800YESYESYESYESYES
