Silicone Rubber Blankets Flexible Heater for Drum & Container

What is a Silicone Heater?

Silicone rubber heating sheet (heating sheet) is also called silicone rubber heating pad，electric heating film，electric heating belt，electric heating sheet, oil drum Heater ，heating belt and heating plate, etc., with different names.

The Heating Element of the silicone heater is an alloy resistance wire after arrangement, which is made of silica gel sandwiched between upper and lower pieces of glass fiber cloth and pressed.

Because it is a flake product, it has good heat transfer and flexibility, and can be tightly wound on curved and cylindrical objects.

Characteristics of Silicone Rubber Flexible Heater

1. Maximum Operating Temperature: 250℃-300℃
2. Insulation Resistance: ≥5MΩ
3. Compressive Strength: 1500v/5s
4. Shape: round, oval, vertebrae, etc., can be opened.
5. Thickness: 0.8mm~4.5mm, lead length: standard 130mm.
6. Installation Method: adhesive installation or binding installation.

Below 100°C is a double-sided tape.

Below 100℃～150℃ is silica gel (RTV).

If it is continuously heated above 150°C, it is recommended to adhere in our factory.

300 heat-resistant adhesives can be used, and our company has KE3418RTV (B) Shin-Etsu chemical agent.

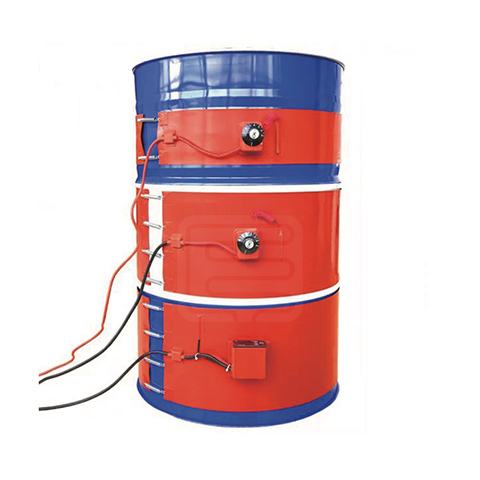

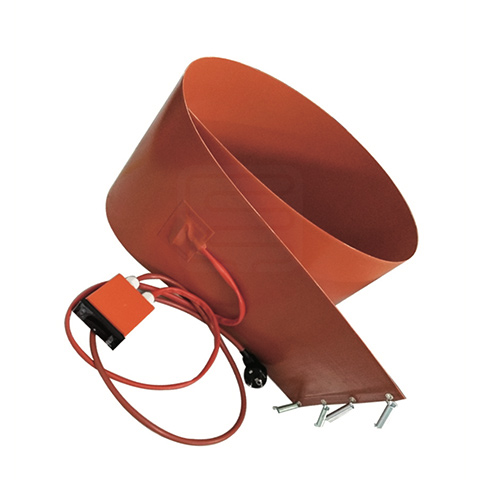

Silicone Flexible Drum Heater

Silicone flexible drum heater is specially designed for removing various sticky substances on the drum. Heating adhesives, greases, asphalt, paints, waxes, oils and various resinous materials results in constant viscosity, maximizing pump efficiency. This heater responds well to seasons and climate changes.

Advantage:

We can adjust the temperature of drum heater by installing Thermostat and sensor on its surface

Sizes：

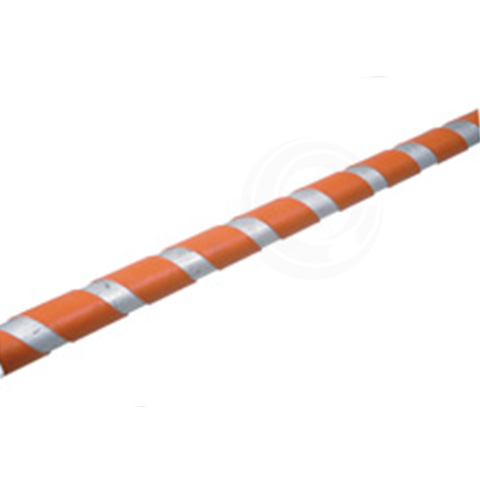

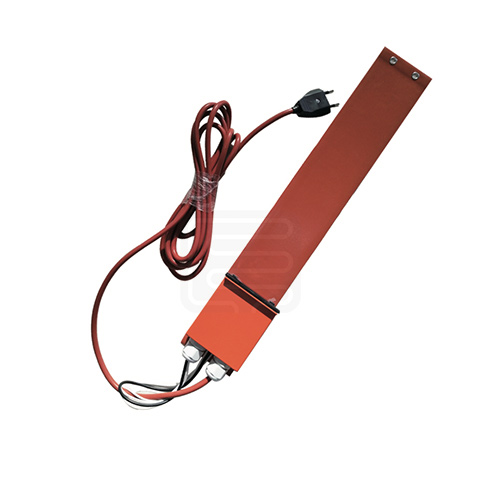

Silicone Flexible Band | Strip Heater

Techical Parameters

1. Description: silicone flexible strip heater can be used in damp, non-explosive gas sites as Industrial equipment or laboratory, tube, tank and sink for heating and warm safeguarding. lt can be directly wound on the surface of the heated with characteristics of easy installation and safe reliability.
2. Structure property:
3. The heaters consist of Nickel Alloy wire and height temperature resistance silicone rubber insulator characterized by quick heat, even temperature allocation, high thermal efficiency, easy installation, anti-age and long life.
4. non-alkali burgles paved with Heating Wire coated by silicone rubber is with good insulation, high temperature resistance property.
5. The heater can be wound onto the heated directly with good touch and even heating due to its good flexibility.
6. Feature:

Maximum temperature resistance of insulator:250°C, recommended <200°C, Resistance:>50M ohm, Dielectric strength:1500 v/1min, wattage

tolerance: +/-10%

1. Application and notes: silicone rubber strip heater is a flexible and long heater with high wattage density. Therefore, it can be used in the heating in constant wattage.

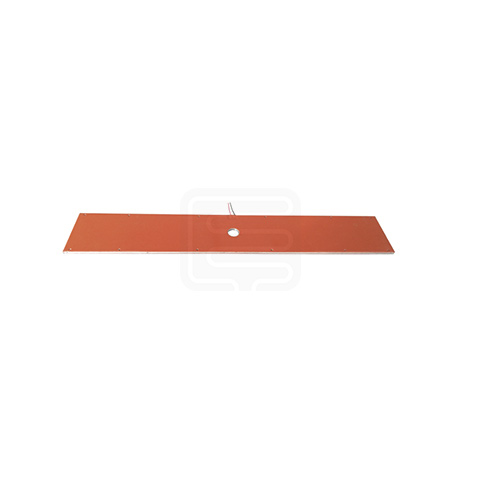

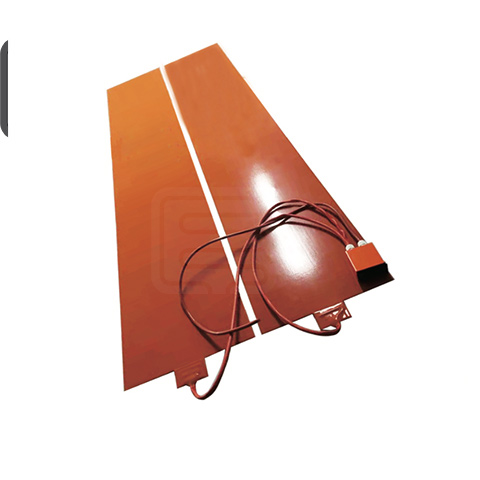

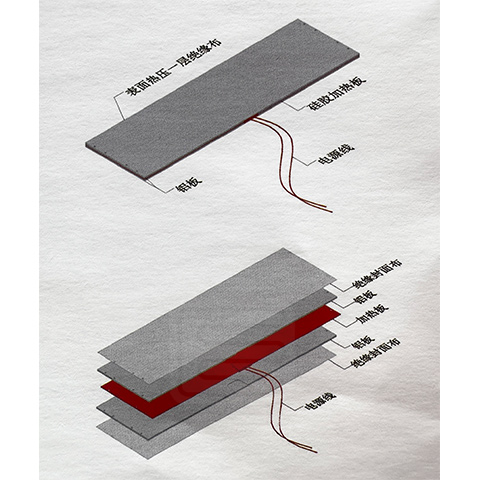

Silicone Aluminum Plate Composite Heater

Technical Parameter

1. The use environment of silicone heating sheet:-50°C - 250°C
2. Maximum working temperature: 260°C
3. Optimum temperature: 150°C
4. Insulation resistance: ≥5MΩ
5. Compressive strength: 1500v/5s
6. Voltage: 3V-380V
7. Power deviation: ±5%

Characteristic

1. Silicone aluminum plate composite heater has excellent physical strength and softness; applying external force to the electric heating film can make the electric heating film element and the heated object in good contact.
2. The silicone aluminum plate composite heater can be made into any shape, including three-dimensional shapes, and various openings can also be reserved for easy installation;
3. The silicone heater is light in weight, the thickness can be adjusted in a wide range (the minimum thickness is only 0.9mm), and the thermal efficiency is high, which can achieve fast heating efficiency and high temperature control accuracy;
4. Silica gel has good weather resistance and aging resistance. As the surface insulation material of the electric heating film, it can effectively prevent the surface cracking of the product and enhance the mechanical strength, which greatly prolongs the service life of the product;
5. The precise metal electric heating film circuit can further increase the surface power density of the silicone rubber heating element, improve the uniformity of the surface heating power, prolong the service life and have good control performance;
6. Silicone electric heating film has good chemical corrosion resistance and can be used in places with harsh environments such as humidity and corrosive gases;
7. The product is mainly composed of nickel-chromium alloy heating wire and silicone rubber High-Temperature insulating cloth. It heats up quickly, has uniform temperature, high thermal efficiency, high strength, easy to use, and has a safe life span of up to ten years, and is not easy to age.

Product Specification

The Use of Silicone Heater

Insulation of drums and pipes, antifreeze of oil drums and Pumps, moisture protection of Motors and generators, heating sheets of paper and plastics, tablet machines, pharmaceutical machines, hardening of adhesives, food vending machines, thermal insulation boards, dental machines, Beauty machines, hospital inspection tables, mobile food carts, physical and chemical equipment, hot plates, antifreeze and heat preservation for measuring equipment in cold regions, preheating for metal welding, and heating for heat shrinkable tubes. Pot antenna antifreeze, suit processing, synthetic board processing, missile aviation equipment insulation, heating room, burner gasification device, cement antifreeze.

Decorative plywood hot press Hot Plate

Clothing hot press hot plate

Insulation of hydraulic cylinders for construction machinery in cold areas

Moisture protection of large silos

Moisture-proof of dust collector funnel

Moisture-proof of rice milling machine

Plywood hot press for guitar

Resin film hot pressing machine

Heating of exhaust pipe and metal pipe

Insulation of ready-mixed concrete silo valve

Conveyor belt drying furnace

Frost prevention of steam scale removal device

Garbage disposal

Preheating of sterilization tank

Pump insulation

Hydraulic device insulation

Fog protection for outdoor camera devices

Coffee, black tea insulated board

Insulation of liquid dispenser

Coffee, black tea insulated board

Table-style stockpot

Heating of circular heating plate

Solar panel insulation

Cylinder square condensation

Defrosting of photoelectric Sensors in cold storage

Business stockpot

Stability of MRI magnetic field

Water insulation for medical instruments

AED insulation

Ski lift seat surface insulation

Magic wheel cabin seat surface insulation

Heating plates for experiments

Fixing toner for a high-speed copier

Binding machine heating plate

Soil Disinfection

The insulation of the iron drum

Preheat the crimson part

Drying of the moisture of the loom
