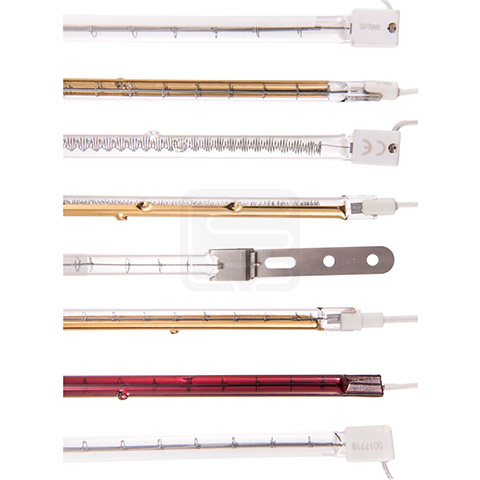

Quartz Tubular Heater | Single Tube

HEATERS --- Electric Infrared Heaters --- Quartz Infrared Heating Elements --- Quartz Tubular Heater | Single Tube

Quartz Tubular Heater | Single Tube

Technical Parameter

Power: 200-4000W
Voltage :55-575V
Tube diameter :8-24mm
Luminous length: 50-1500mm
Filament temperature :1100-2600°C
Wavelength: 1-2μm
Coating: White/Gold/Clear/Helen
Start time :1s

Infrared Radiator | Single Tube - Short Wave Specification

Product code	Voltage (V)	Wattage (W)	Quartz Tube (mm)	Total Length	Heated Length	Reflector	Base	Philips No.
S8050	120	500	10	241	142	Clear	X	13169X
S8051	120	500	10	218	142	White	X	13169X/98
S8052	235	500	10	227	127	White	SK15	13169X98
S8053	235	700	10	216	150	White	SK15	13842Z/98
S8054	235	1000	10	370	280	Clear	X	13195X
S8055	235	1000	10	370	280	White	X	13195X98
S8056	235	1000	10	350	280	Clear	Y	13195Y
S8057	235	1000	10	355	280	White	Y	13195Y/98
S8058	235	1000	10	355	280	Clear	X	13713X
S8059	235	1000	10	355	280	White	SK15	13713Z/98
S8060	235	1000	10	370	280	White	X	13195X/98
S8061	230	2000	11.5	550	497	Clear	R7S	13938R
S8062	230	2000	11.5	657	500	White	SK15	13214Z/98
S8063	235	2000	11.5	350	286	White	V	13168V
S8064	235	2000	11.5	370	288	Clear	X	13168X
S8065	400	2000	11.5	512	416	Clear	X	13245X
S8066	400	2000	11.5	512	416	White	X	13245X/98
S8067	400	2000	11.5	512	410	Clear	X	13765X
S8068	400	2000	11.5	512	410	White	X	13765X/98
S8069	480	2500	11.5	731	635	Clear	U	2500T3CL
S8070	480	2500	11.5	731	638	Gold	U	2500T3
S8071	230	3000	11.5	787	700	Clear	SK15	14107Z
S8072	230	3000	11.5	787	700	White	SK15	14107Z/98
S8073	400	3000	11.5	802	700	Clear	X	13230X
S8074	400	3000	11.5	802	700	White	X	13230X/98
S8075	240	3200	11.5	1062	815	Clear	U	3200T3/CL
S8076	480	3650	11.5	1061	965	Clear	R7S+LEAD	14158/99
S8077	230	1500	11.5	900	800	Gold	SK15	\
S8078	230	1500	11.5	1370	1300	Clear	SK15	\
S8079	400	2500	11.5	670	600	White	SK15	\
S8080	230	2000	11.5	750	680	White	SK15	\
S8081	380	3300	11.5	900	800	Gold	R7S+LEAD	\
S8082	480	3000	11.5	600	520	White	SK15	\
